 New version of GeigerLog just uploaded		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

ullix

Germany
1171 Posts
Posted - 07/13/2017 :  04:21:29  Show Profile  Reply with Quote

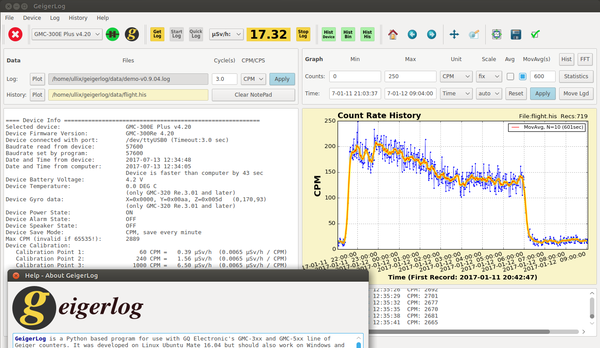

GeigerLog 0.9.04 is now available at SourceForge: https://sourceforge.net/projects/geigerlog/

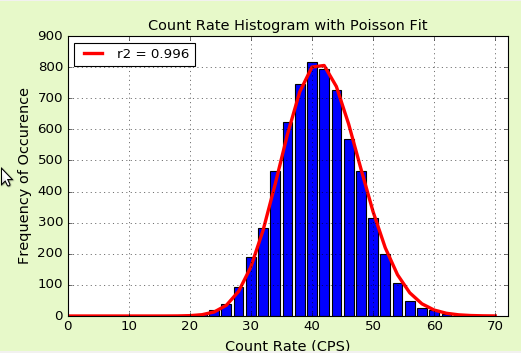

Beyond some bug fixes, GeigerLog got various improvements for ease of handling and more flexibility for typical operations. Also, it can now create a count rate histogram with Poisson fit, which greatly helps to judge quality of logging. The theory behind it is explained in my Potty Training article (also on SourceForge)

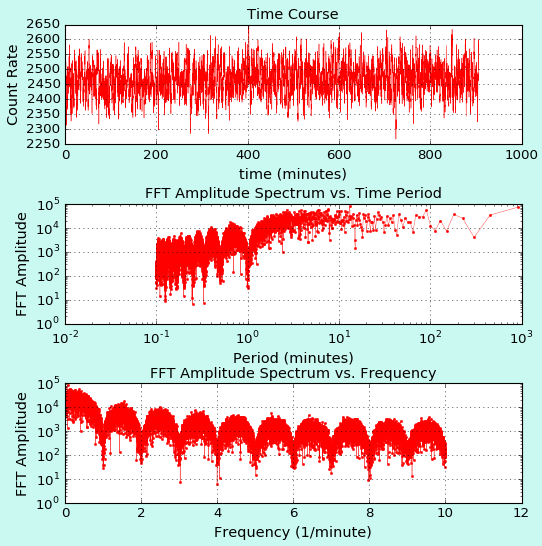

It also offers a FFT analysis to inspect recordings for any periodic signal hidden within the data; I'll explain this separately.

It has first support for GMC-500 counters; Logging and History should work. However, the GMC-500 is modified in its configuration, hence certain counter control and readouts don't work, as the configuration is so far not disclosed.

@ZLM: could you provide a description of the configuration meanings, as you did for the 300 series here: http://www.gqelectronicsllc.com/forum/topic.asp?TOPIC_ID=4447

Would be greatly appreciated!


Image Insert:

177484 bytes

Image Insert:

32188 bytes

Image Insert:

84872 bytes
