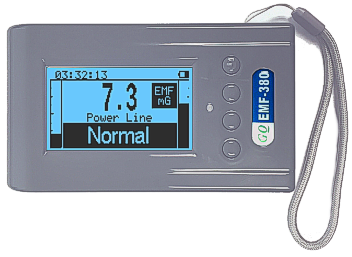

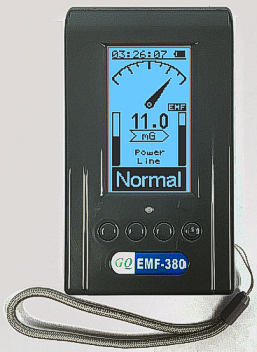

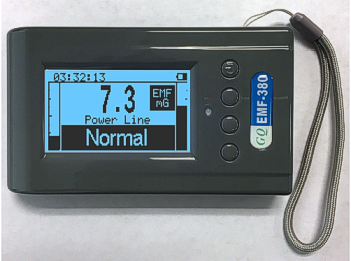

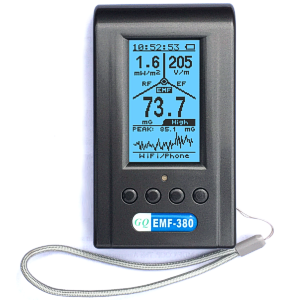

|Advanced GQ EMF-380 Multi-Field, Multi-Function |
EMF Meter and RF Spectrum Power Analyzer
The GQ EMF-380 multi-function digital EMF meter is designed to be a portable and convenient device. It can be used as industrial, commercial maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, universities, laboratories, and electronic repair shops. The device integrated testing features include three axis Electromagnetic Fields, Electric Field, Radio Frequency and Radio Spectrum Power Analyzer (EMF-360+/EMF-380 only). The meter is able to identify the common source from EMF measured, such as Power Line, WiFi etc. It also comes with built-in audible and visual alarm. It can be used for EMF,EF, RF detection and monitoring both indoor and outdoor(protected), as well as in other similar environments. It can continually monitor the radiation. When connect the device to a PC, PC software can download the radiation data to the computer and the user is able to analyze those data later. The device also installed a high contrast black/white LCD module and one front LED indicator.

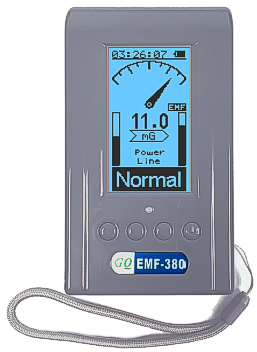

The built-in electronic gyroscope let user to read the data from upside down view easily.

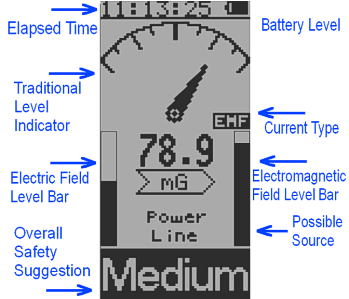

Safety suggestion indicator provides a simple and easy way to understand overall radiation risk.
The device is equipped with an USB port, utilized for communication and external power supply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery.The GQ EMF-380 internal rechargeable battery can be charged with a standard USB port, USB charger or with a computer USB port. Using the external power, continuous data monitoring is possible. Using either power adapter you will not have to worry about the batteries charge condition or any data loss.The EMF-380 also has a real time clock on board for time related data measurement.
The meter installed multiple sensors to ensure maximum scale/range measurement and highest accuracy.
High sensitivity meter let you check EMF/RF radiation easily. Examples: computer mouse, car remote key, cell phone, cordless phone, static electricity, electric field, WiFi, computer laptop, microwave, electric heater, hair dryer, vehicle engine, light, outdoor power line. With RF spectrum power analyzer, you can monitor the WiFi signal power, Smart meter signal power, spy wireless video camera signal, even track radio/TV signal in air.
Model Selection Guide
|Three Axis EMF||Yes||Yes||Yes|
|RF Power||Up to 7GHz||Up to 7GHz||Up to 7GHz|
|RF Spectrum Power Analyzer||No||2.4GHz-2.5GHz||2.40 to 2.5GHz|
240 to 11040Mhz
2.30 to 125.34MHz
64 to 108MHz
520 to 1710KHz
153 to 534KHz
EMF (Electromagnetic Field)Triple axis (X, Y, Z) up to 300MhzRange: 0.0~2000mGResolution: 0.1/1 mG or 0.01/0.1uTAccuracy:+/-15%
EF (Electric Field)
Range: 0V/m to 2000V/mResolution: 0.1 V/mAccuracy: +/-15%
RF Field (Radio Frequency Field)
Frequency: up to 7GHz

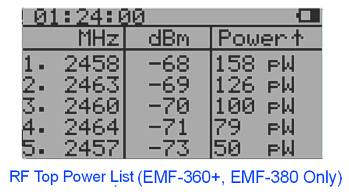

RF Spectrum Power Analyzer
Frequency band 1: 153KHz to 534KHz
Frequency step: 1KHz to 3KHz
Frequency span: 1KHz to 3KHz
Frequency band 2: 520Khz to 1710KHz Frequency step: 1KHz to 6KHz
Frequency span: 1KHz to 6KHz
Frequency band 3: 64MHz to 108MHz Frequency step: 10KHz to 100KHz
Frequency span: 40KHz to 100KHz
Frequency band 4: 2.3MHz to 25.34MHz Frequency step: 1KHz to 180KHz
Frequency span: 1KHz to 6KHz
Frequency band 5: 240MHz to 1040MHz Frequency step: 1KHz to 10KHz
Frequency span: 50KHz to 4000KHz
Frequency band 6: 2.4GMhz to 2.5GMHz Frequency step: 25KHz to 405KHz
Frequency span: 58KHz to 812KHz
Audible alarm: buzzerVisual alarm: green, red LEDOperating temperature & humidity: 5 to 40 degree C, below 80% RHWorking Voltage: 3.6-3.7VDisplay: LCD dot matrix, back lightedPower Consumption: 25mW to 125mW (backlight dependant)Power: Supply 3.7V Li-Ion battery / USB powerDimensions 135 x 78 x 25 mm (5.25'x 3' x 1')
Auto Identify the EMF Radiation Possible SourceGQ EMF Meter is capable to identify the common possible EMF radiation source once it collected valid data from the source. The common sources include: Power Line, WiFi, Microwave, static electricity, AC EF(AC voltage Electric Field) etc. It also can provide detailed information of the source. Such as power and approximate frequency.
Open Communication Protocol
GQ EMF Meter provides open GQ RFC1701 communication protocol for easier system integration. User is able to send command to operate the meter remotely.See software download section for detailed GQ RFC1701 protocol.

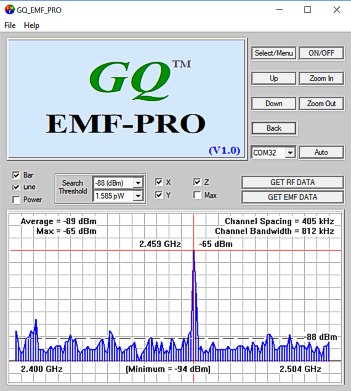

GQ EMF-PRO Utility Software
GQ EMF Meter comes with a free Windows utility software. User is able to remote control the unit and get the EMF,RF data from device. It also can save the data into the .csv spredsheet file.See software download section for detailed GQ RFC1701 protocol.
For technical support, please visit our support forum: http://www.gqelectronicsllc.com/forum/default.asp
GQ EMF-380 1:1 Simulator
Try the exact user interface demo(simulation) software of GQ EMF Meter before you buy it, please visit GQ Electronics LLC download page.Click here to download
User Manual/User Guide
A complete user manual/guide can be downloaded from GQ Electronics download page.Click here to download
1. GQ EMF meter main unit.
2. USB cable
3. Quick start guide
4. Download link for a complete user guide in PDF version.
One year warranty
