ADP-030 FWH/LPC+ Adapter V2.1

Price:

US$15.00

CAD$20.7

Euro€14.25

GBP£12.75

More info...

Visits: 11411

Add to wish list

Description:

For advanced long life ZIF(Zero Insertion Force)version click here: FWH/LPC+ V2.1 PLCC32 ZIF

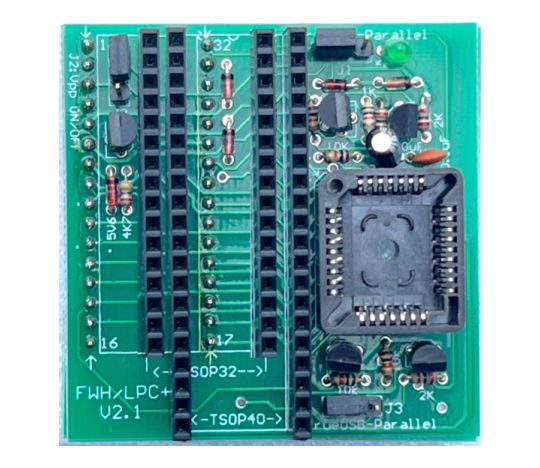

This FWH/LPC+ adapter is backward compatible with Willem programmer's FWH/HUB adapter. It supports both True USB as well as parallal willem programmer.

It's able to accept TSOP32 and TSOP40 ZIF socket for supporting TSOP32 and TSOP40 FWH/LPC flash chips.

This adapter is for True USB/Standard/Enhanced Willem EPROM programmer.

Device supported:
INTEL:i82802AB, i82802AC
ATMEL:AT49LW040, SST:SST49LF002/A, SST49LF003/A,SST49LF004/A,SST49LF008/A;W39V040F,W39V040FA,W39V040FAP,W39V080F,W39V080FA,W39V080FAP
LPC Flash:SST:SST49LF020/A,SST49LF030/A,SST49LF040/A;W39V040A,W39V040AP,SST49LF080/A;W39V080A,W39V080AP,W49V002A,W49V002APSST 49LF002B, 49LF004B
FWH/LPC:PMC:PMC49FL002,PMC49FL004ST micro:M50FW040,M50FW002,M50LPW002,M50LPW040,M50FLW040A,M50FLW080B,M50LPW080,M50FLW080A,M50FLW080B

With TSOP40 ZIF socket:
INTEL:i82802AC;ATMEL:AT49LW080/008;SST:SST49LF008/A;
LPC flash:SST:SST49LF080/A;
FWH/LPC:ST micro:M50FW080/008,M50LPW080/008,M50FW016,M50LPW116;PT49V080/008

For professional version clik here: FWH/LPC+ V2.1 PLCC32 ZIF
